Name: Cobb 2008-2014 Subaru WRX Flex Fuel Fuel Upgrade Package (cobbSUB0FF0050)
SKU: 88819

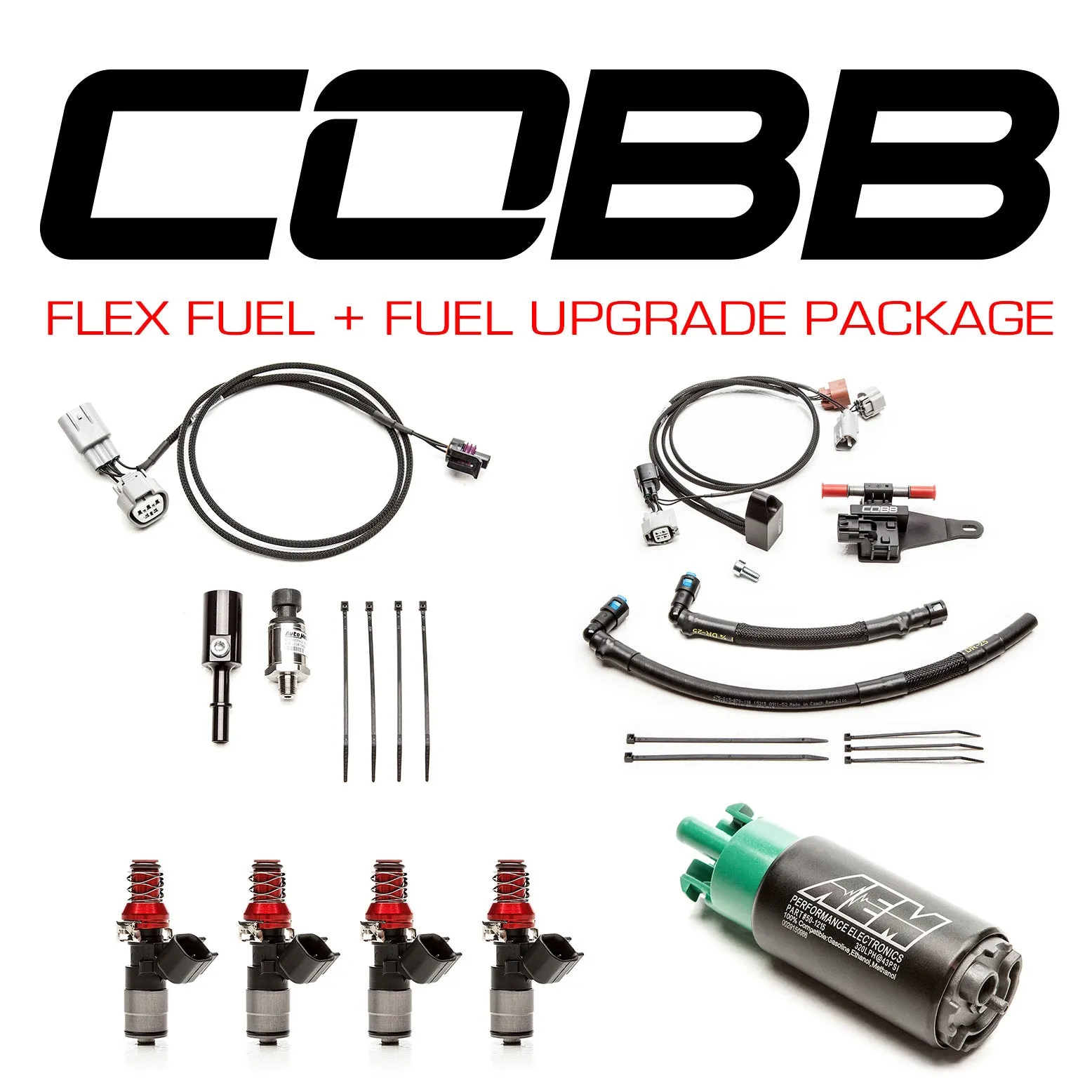

The Subaru Flex Fuel plus Fuel Upgrade Package for the 2008-2014 WRX includes the following items. Flex Fuel Ethanol Sensor Kit Fuel Pressure Sensor Kit Subaru Top Feed 1050x Fuel Injectors Subaru AEM High Flow Fuel Pump.

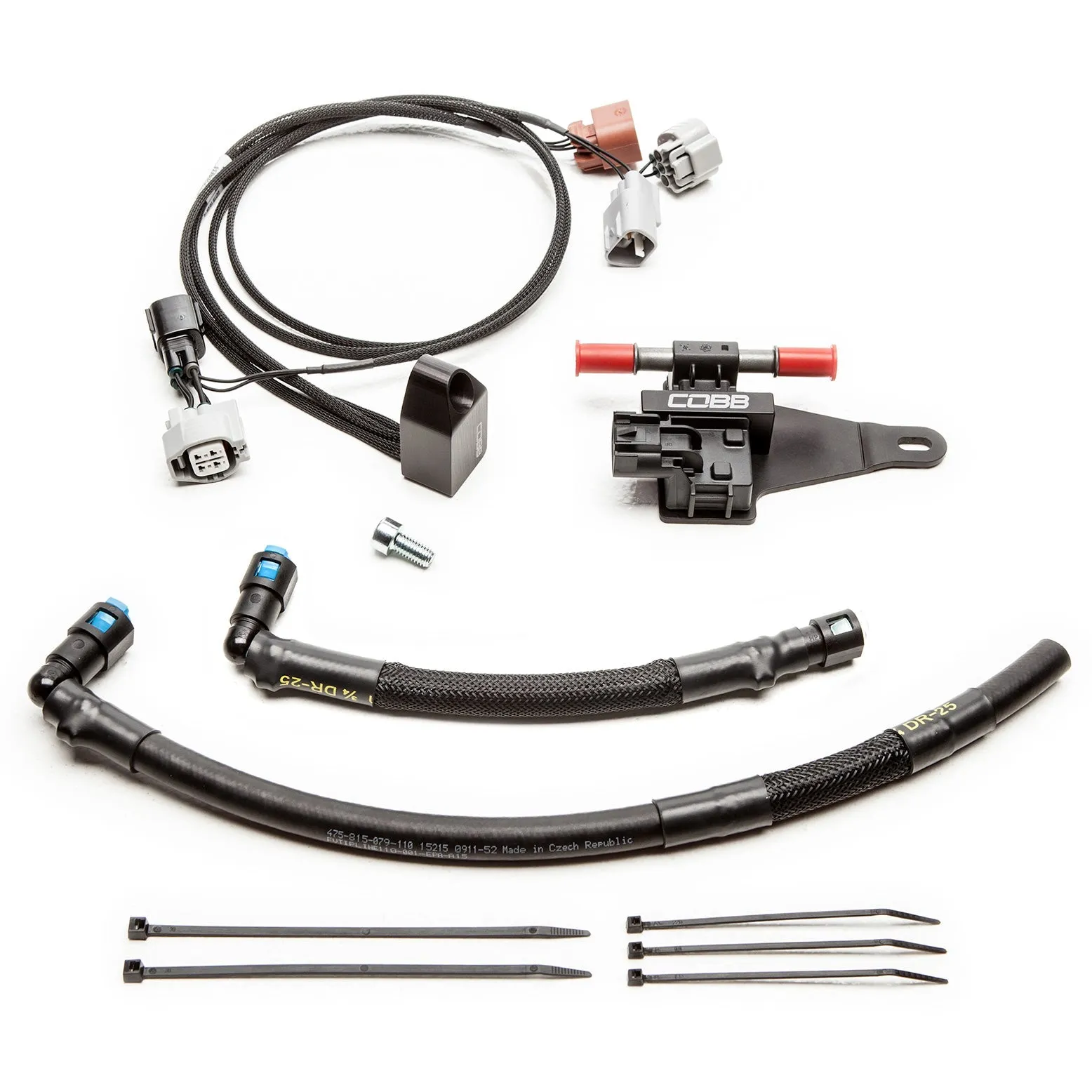

SUBARU FLEX FUEL ETHANOL SENSOR KIT

A complete plug and play solution enabling users to convert their supported Subaru WRX or STI to a Flex Fuel configuration. This is the easiest to use and most sophisticated Flex Fuel kit on the market. Utilizing OEM fuel and electronic connectors, the Ethanol Sensor Kit measures the ethanol content of fuel being fed to the motor. That data is then converted into a signal that the ECU can use for adjusting calibrations and to be displayed on a custom Accessport monitor. The Flex Fuel Ethanol Sensor Kit is a requirement for converting your supported Subaru to a Flex Fuel configuration. The Ethanol Sensor Kit measures the ethanol content of fuel being fed into the motor and converts it into data that can be utilized by the car's ECU.

PLEASE NOTE

NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY EMISSION-CONTROLLED MOTOR VEHICLE.
Requires Custom Tuning

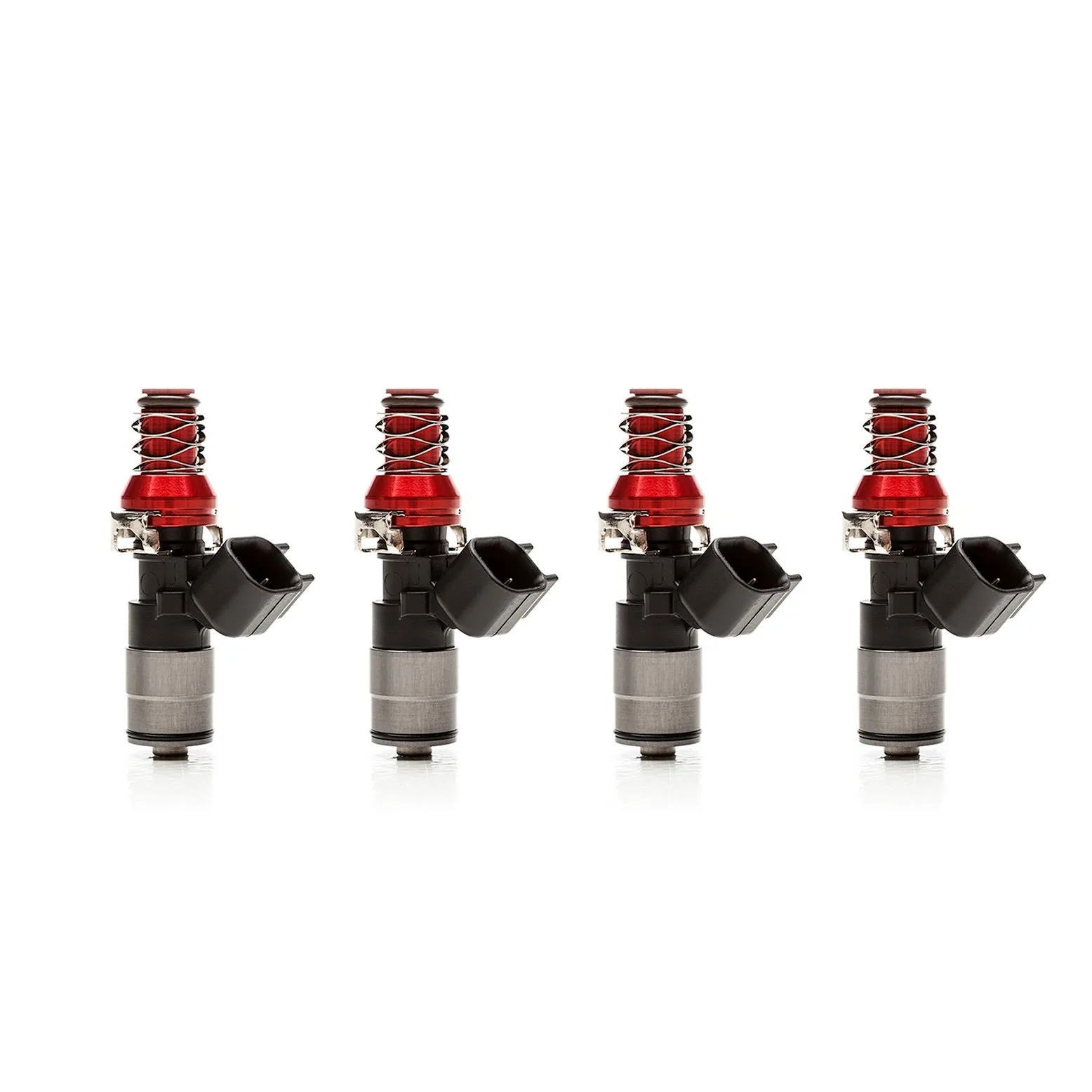

SUBARU TOP FEED 1050X FUEL INJECTORS

The COBB 1050x Fuel Injectors provide increased fuel flow while maintaining stock idle and driveability with proper tuning. Corrosion-resistant internals makes them compatible with all known fuels, capable of extended service life with corrosive fuels. Replaceable inlet filter extends service life. Wanting to run E85 or need more fueling for your specific application? The COBB 1050x Fuel Injectors are your ticket. Simply add these injectors, fuel pump, tune, and you are off to the races. Sold in matched sets with dynamic flow rate variance of 1%.

Nominal Flow Rate – 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 10.0 Bar (145.0 psi)
Fuel Compatibility – Compatible With All Known Fuels
Electrical Connector – USCAR

PLEASE NOTE

Requires Custom Tuning

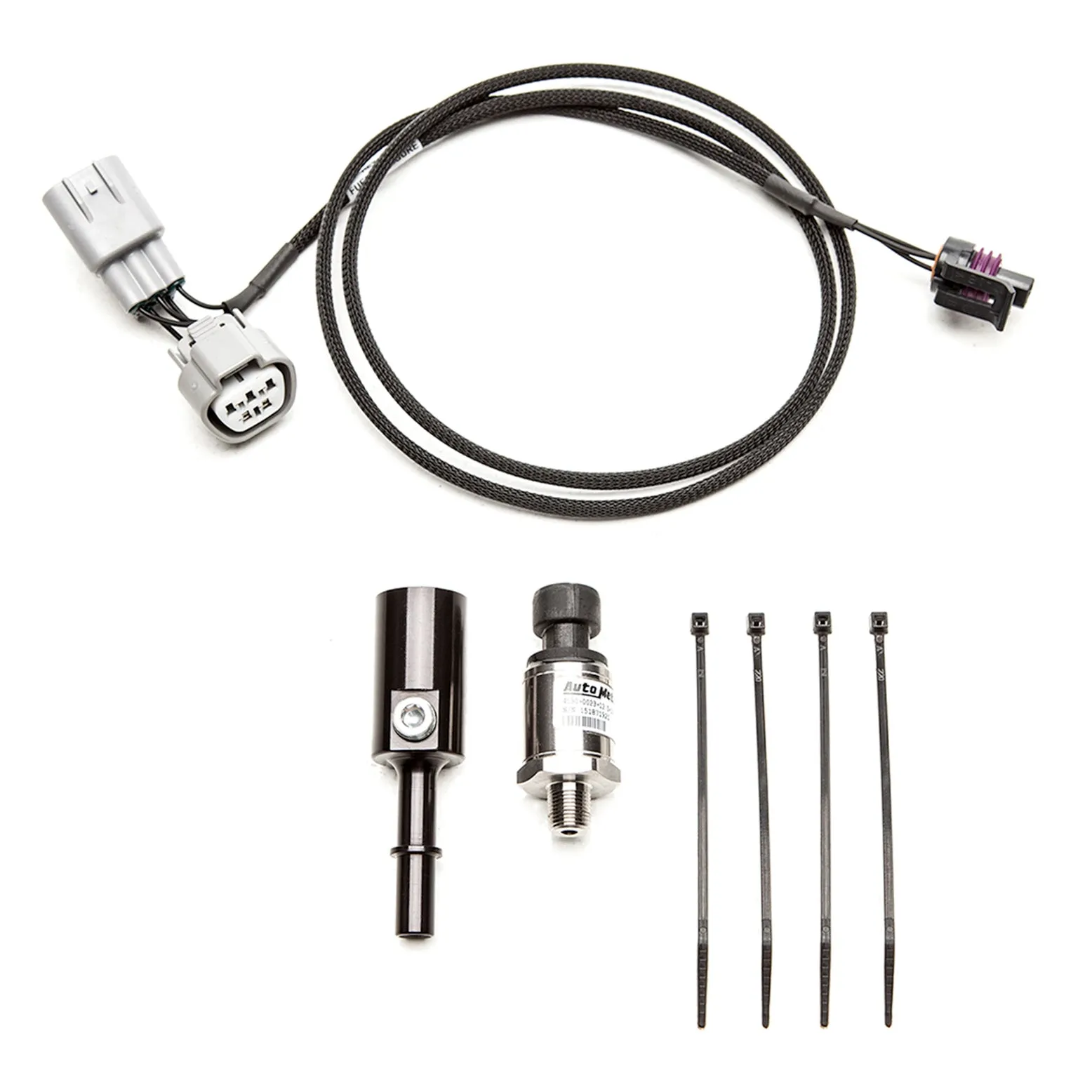

SUBARU FUEL PRESSURE SENSOR KIT (5 PIN)

A plug and play solution enabling users to monitor Fuel Pressure on a Custom Accessport monitor. The Fuel Pressure Sensor Kit uses OEM quality connectors, making fit and finish second to none. Utilizing existing factory inputs, this kit will allow users to easily monitor Fuel Pressure on supported Subaru vehicles. Monitoring Fuel Pressure is vital on any vehicle, especially those that are asking more about their fuel system. As demand for a fuel system increases, so do the consequences of a failure. Monitoring fuel pressure will alert users if there is a fault in the vehicles' fuel system. Utilizing existing inputs, the Fuel Pressure Sensor Kit allows users to monitor Fuel Pressure on a custom Accessport monitor.

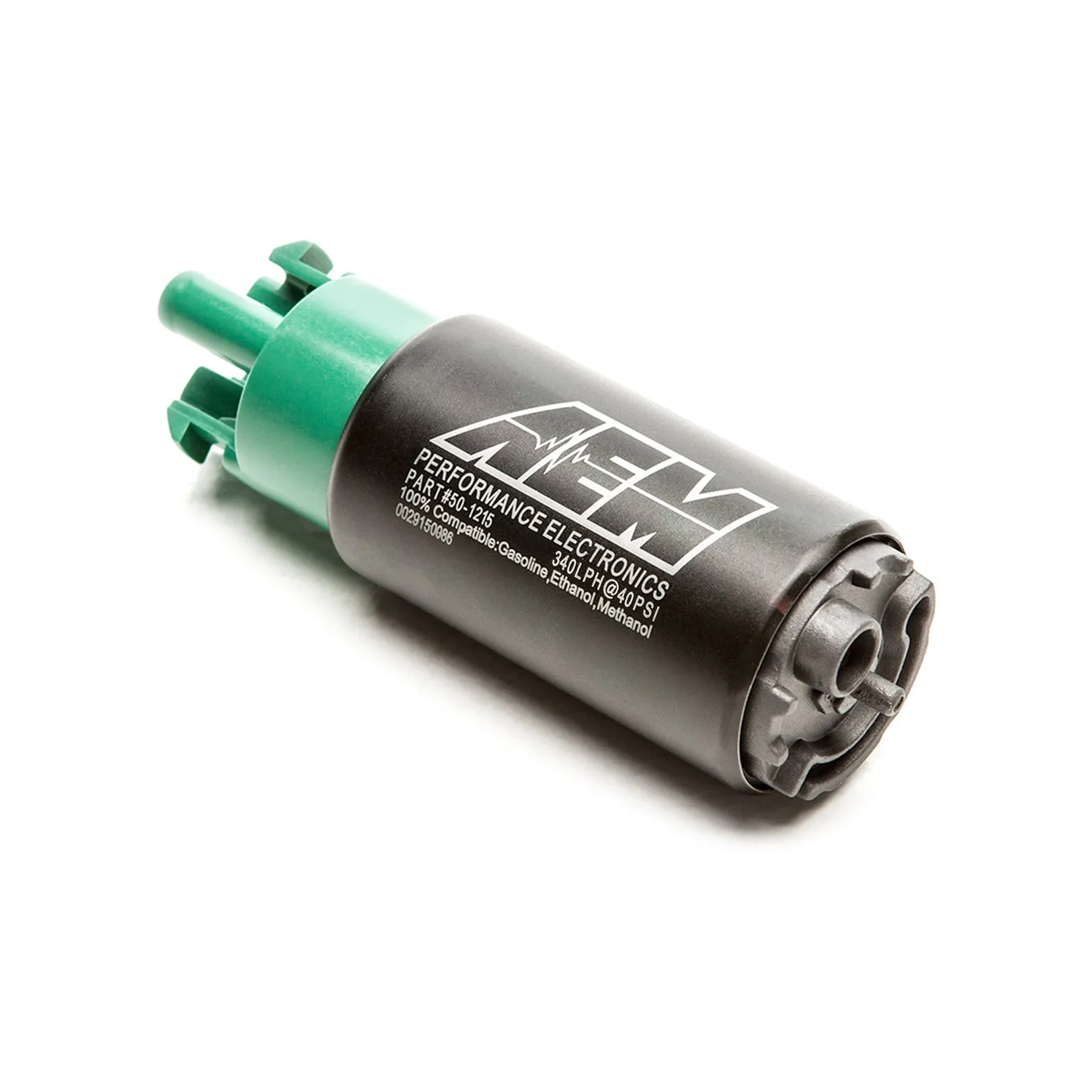

SUBARU HIGH FLOW FUEL PUMP

AEM's 340lph E85-Compatible High Flow In-Tank Fuel Pumps feature robust internal construction that is designed to withstand the low lubricity characteristics of ethanol and methanol fuels and is tested to work with ethanol fuels up to E100, methanol fuels up to M100, and all types of gasoline. Its compact, short body design (65mm length) with mounting hooks also makes it ideal in universal applications that have fuel tanks with tight tolerances. The 340lph E85-Compatible High Flow In-Tank fuel pump includes a wiring harness, pre-filter, and O-rings. Every AEM 340lph E85-Compatible Fuel Pump is tested to flow 340 lph at 40 PSI before it is packaged for sale. When looking for a drop-in fuel pump that was suitable for the demands of Subaru Flex Fuel setups, AEM's 340lph E85 Compatible In-Tank pump checked all of the boxes. Its compact design allows it to be a direct replacement for the factory fuel pump. This pump is a vital component of COBB's Stage 3 Flex Fuel Power Package

PLEASE NOTE
